NUMINOS® GIMBLE XS

NEW

Colour

Color 2

electrical power

Beam angle

Colour temperature

Installation diameter

Select the item now with matching

RRP£78.00Prices for business customers excl. VAT

Dispatch on

Art. no.: 1010063

Delivery information

Delivery time: 1–3 working days

Made to order

Technical overview

20
50000 h
IP20
19

Gimballed: This product can be swivelled and pivoted.
Direct lighting - beam angle: This value describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be.
Average lifespan in h: The average lifespan of a lightbulb or light source in hours.
IP protection rating: The IP protection class indicates the suitability of electrical equipment for different environmental conditions.
UGR ≤: UGR= Unified Glare Rating. Indicates the standardised value of psychological glare. The smaller the value is, the lower the glare.

Technical data

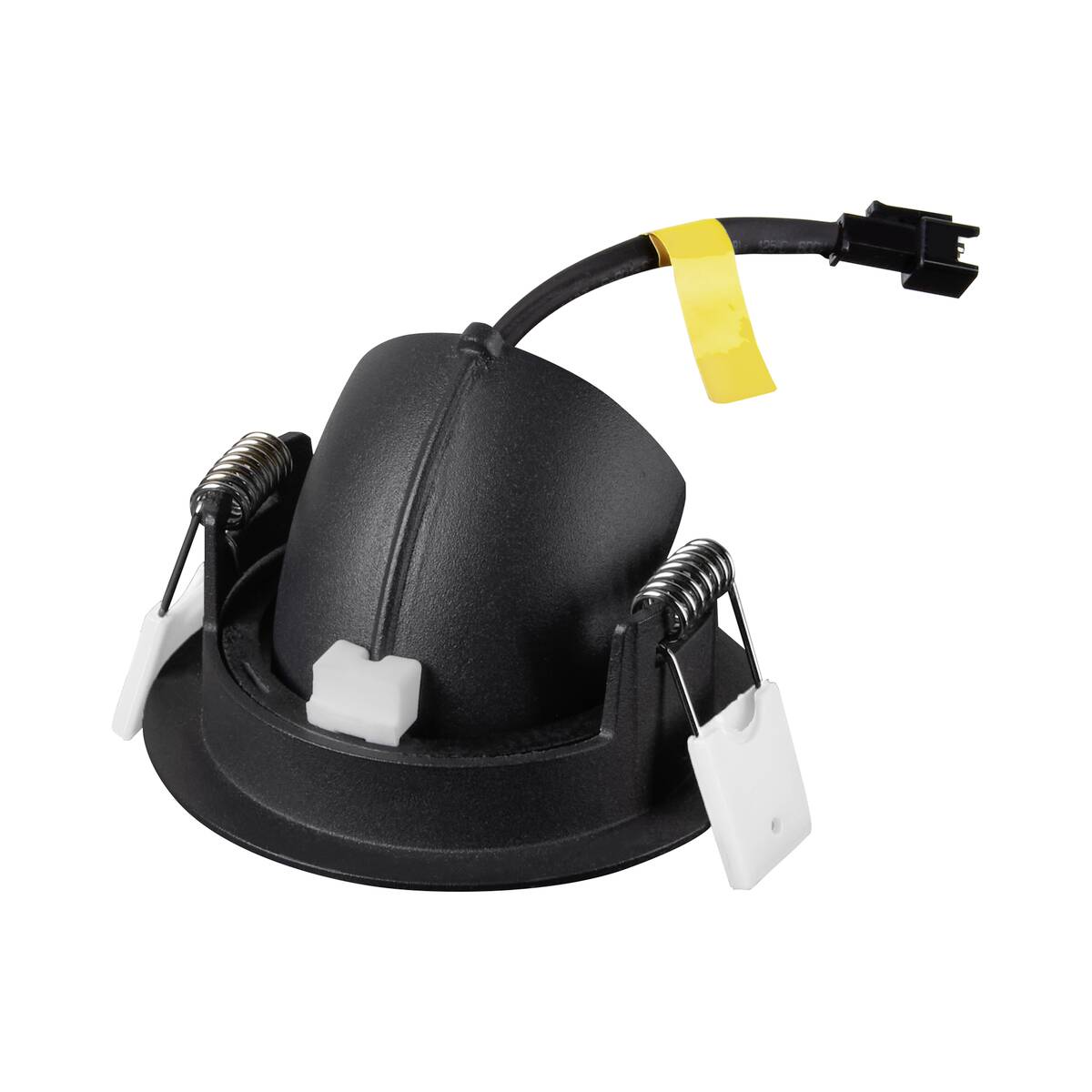

Product name: NUMINOS® GIMBLE XS
EAN Number: 4024163306911
Colour: black/white
Assembly: Recessed
Luminous Flux: 1000 lm
Colour temperature: 4000 Kelvin
CRI: 90
Beam angle: 20 °
UGR ≤: 19
CCT switch: No
Different light outlets: 1
Height: 5.7 cm
Diameter: 8 cm
Shape: round
Material: Aluminium
IP Code: IP20

Rotating or tilting: rotary bar and tiltable
Vertical tilting range: 60 °
Horizontal rotation range: 355 °
Installation diameter: 6.8 cm
Installation depth: 8 cm
Shape of cut-out: round
Assembly details: Ceiling
electrical power: 6.9 W
Secondary power / secondary voltage: 200 mA
Service life: 50000 h
Energy efficiency class: LS_10102
Ambient temperature: 40 °C
Risk group: 1
Net weight: 0.11 kg

Product information

The NUMINOS light system from SLV combines technology, design and functionality like no other. This way, you can experience a thousand lighting design possibilities with different downlights and spotlights. Also with the NUMINOS® GIMBLE XS recessed ceiling light, which convinces with the best workmanship and lighting quality. Ideal for discreet, modern and space-saving lighting that directs the accent to objects or the room. Installation is then done in no time at all. When to choose NUMINOS from SLV – modular diversity awaits you.

Downloads

Produktinformationen

Datasheet (PDF)

Manual (PDF)

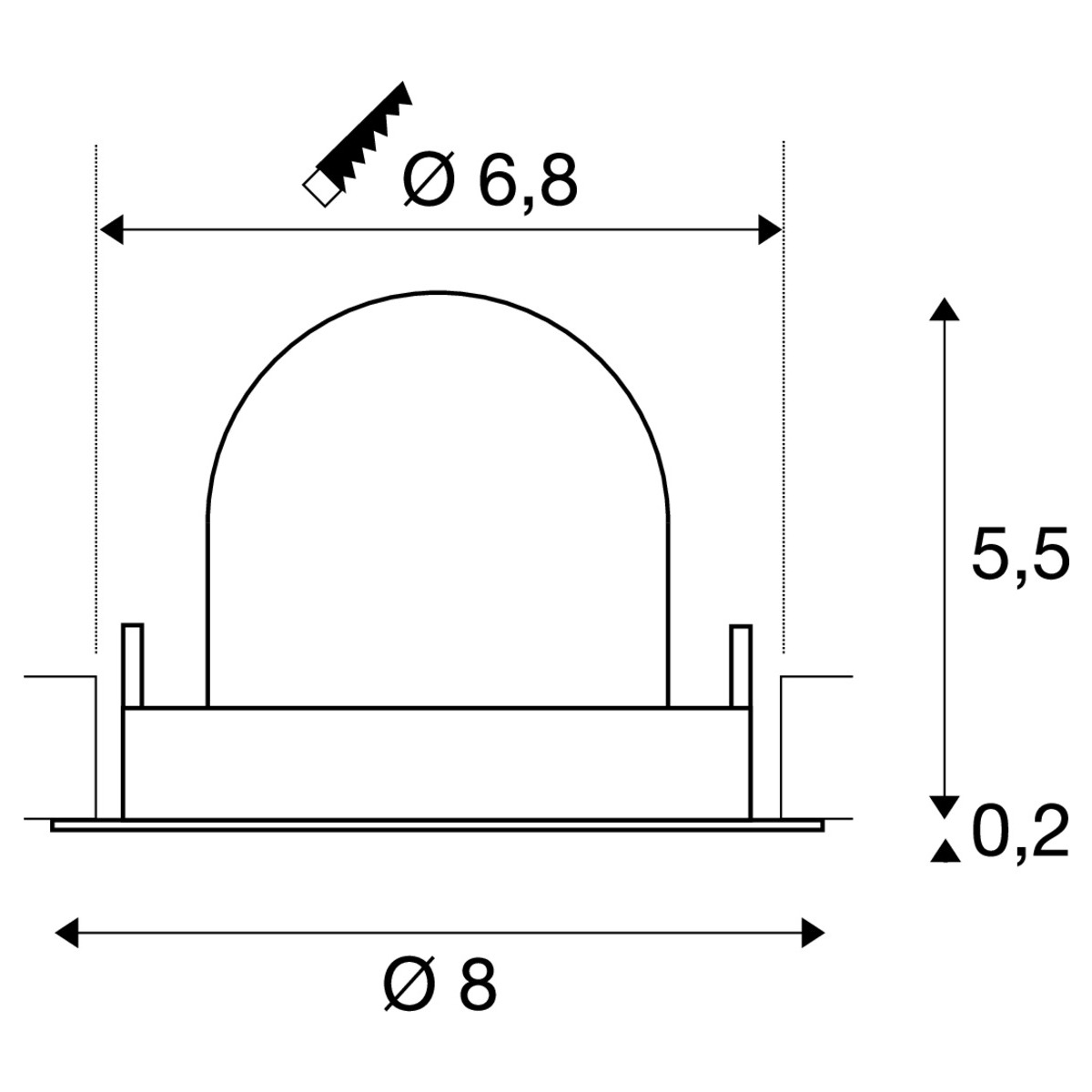

Maßzeichnung (JPG)

Dokumente

CE declaration (PDF)

REACH (PDF)

Ausschreibungsdaten

Tender Text (TXT)

Lichtplanungsdaten

Download ROLF file (ROLF)

Download ULD file (ULD)
